High Clamping Force
Designed for insert moulding applications requiring enhanced clamping strength and precision.
Advanced Solutions For End-To-End Wire Processing
SD-VIM-35T
35 TON VERTICAL INJECTION MOULDING MACHINE
The SD-VIM-35T Vertical Injection Moulding Machine is designed for insert moulding applications requiring higher clamping force and precision. It is widely used for automotive connectors, electrical parts, and industrial components, offering stability, speed, and energy efficiency.
Vertical Clamping with Horizontal Injection for compact footprint.
Insert Moulding Ready for over-moulding metal inserts or components.
Advanced PLC Control System with Touchscreen HMI for user-friendly operation.
High Injection Accuracy with precision screw design.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Precision Performance
Ensures accurate and consistent moulding for complex automotive and electrical components.
Wide Industry Applications
Suitable for automotive connectors, electrical parts, and various industrial components.
Stable & Energy Efficient
Delivers reliable operation, faster production cycles, and reduced energy consumption.
Technical Specifications
Model
Model 1 SD-VIM-35T
Clamping Force
Model 1 35 Tons
Clamping Stroke
Model 1 200 – 250 mm
Tie Bar Distance
Model 1 400 × 350 mm (customizable)
Max. Daylight Opening
Model 1 450 – 500 mm
Injection Pressure
Model 1 1500 – 1900 kg/cm²
Injection Capacity
Model 1 70 – 100 g (depending on screw size)
Screw Diameter
Model 1 28 – 32 mm
Injection Speed
Model 1 60 – 120 mm/s
Heating Zones
Model 1 3 – 4 zones
Temperature Control
Model 1 PID, ±1°C accuracy
Power Supply
Model 1 AC 220V / 380V, 50/60 Hz
Motor Power
Model 1 ~6 – 7 kW
Heater Power
Model 1 ~4 kW
Machine Weight
Model 1 Approx. 2500 – 2800 kg
Dimensions (L×W×H)
Model 1 ~1.5 m × 1.2 m × 2.6 m
Control System
Model 1 PLC + Touchscreen HMI
Cooling System
Model 1 Water cooling required
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
Related Products

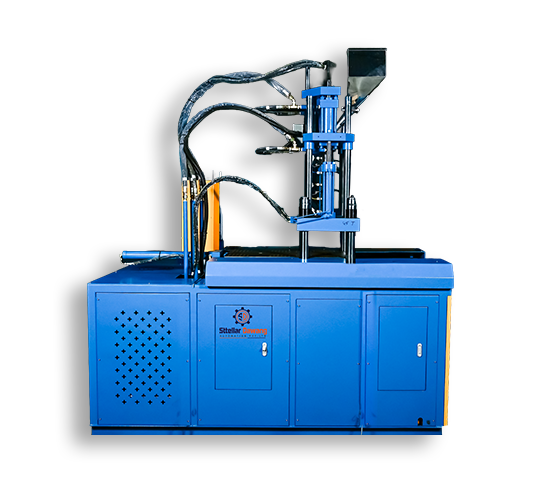

SD-VIM-45T Advanced Solutions For End-To-End Wire Processing
