Heavy-Duty Moulding
Designed for demanding insert moulding applications requiring robust and reliable performance.
Advanced Solutions For End-To-End Wire Processing

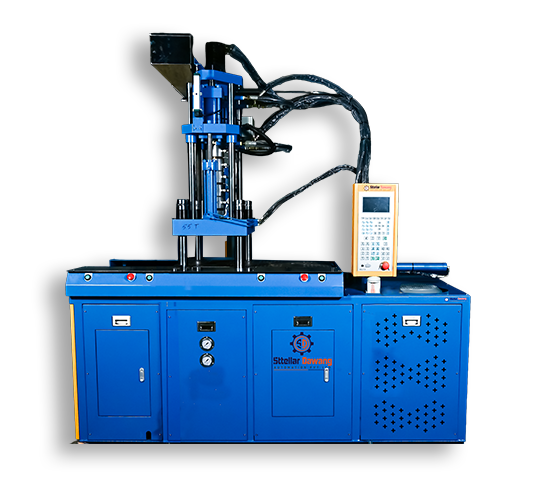

SD-VIM-55T
55 TON VERTICAL INJECTION MOULDING MACHINE
The SD-VIM-55T Vertical Injection Moulding Machine is designed for heavy-duty insert moulding applications, delivering high clamping force, precision injection, and energy efficiency. It is widely used in automotive, electrical, and industrial moulding sectors for medium to large components.
Vertical Clamping with Horizontal Injection for easy insert positioning and stable moulding.
High Clamping Force (55 Tons) for large or multi-cavity moulds.
PLC with Touchscreen HMI for advanced process control and real-time monitoring.
Servo System Option for reduced power consumption and faster response.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
High Clamping Force
Provides strong and stable clamping for consistent production of medium to large components.
Precision Injection System
Ensures accurate material flow and high-quality moulded parts with minimal variation.
Energy-Efficient Operation
Optimized for reduced energy consumption while maintaining high productivity across automotive, electrical, and industrial applications.
Technical Specifications
Model
Model 1 SD-VIM-55T
Clamping Force
Model 1 55 Tons
Clamping Stroke
Model 1 250 – 280 mm
Tie Bar Distance
Model 1 500 × 450 mm (customizable)
Max. Daylight Opening
Model 1 550 – 600 mm
Injection Pressure
Model 1 1500 – 2000 kg/cm²
Injection Capacity
Model 1 100 – 150 g (depending on screw size)
Screw Diameter
Model 1 30 – 36 mm
Injection Speed
Model 1 60 – 120 mm/s
Heating Zones
Model 1 3 – 4 zones
Temperature Control
Model 1 PID, ±1°C accuracy
Power Supply
Model 1 AC 220V / 380V, 50/60 Hz
Motor Power
Model 1 ~8 – 9.5 kW
Heater Power
Model 1 ~5.5 kW
Machine Weight
Model 1 Approx. 4000 – 4500 kg
Dimensions (L×W×H)
Model 1 ~1.7 m × 1.4 m × 3.0 m
Control System
Model 1 PLC + Touchscreen HMI
Cooling System
Model 1 Water cooling required
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
