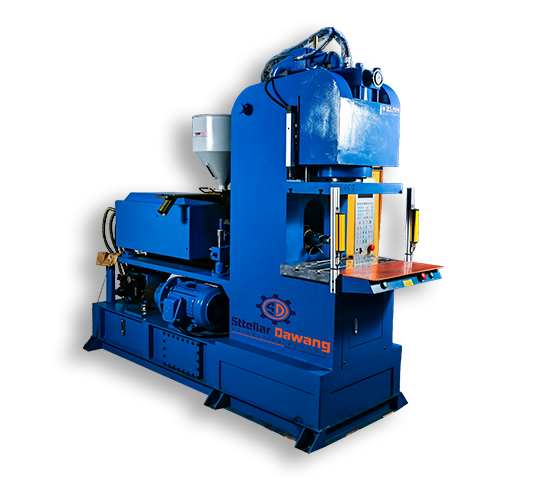

SD-VIM-80T
80 TON VERTICAL INJECTION MOULDING MACHINE
The SD-VIM-80T Vertical Injection Moulding Machine is a high-capacity vertical clamping machine designed for large insert moulding and precision plastic components. It delivers exceptional clamping force, stability, and accurate injection performance, ideal for automotive, electrical, and industrial applications.
High Clamping Force (80 Tons) for large moulds and heavy inserts.
Vertical Clamping with Horizontal Injection for ergonomic insert placement.
PLC + Touchscreen HMI for user-friendly control and process monitoring.
Optional Servo System for energy efficiency and low noise operation.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Exceptional Clamping Force
Delivers powerful and stable clamping for consistent production quality.
Accurate Injection Control
Ensures precise material injection for high-quality and dimensionally accurate parts.
Versatile Industrial Use
Ideal for automotive, electrical, and industrial applications requiring reliability and efficiency.
Technical Specifications
Model
Model 1 SD-VIM-80T
Clamping Force
Model 1 80 Tons
Clamping Stroke
Model 1 280 – 300 mm
Tie Bar Distance
Model 1 550 × 500 mm (customizable)
Max. Daylight Opening
Model 1 600 – 650 mm
Injection Pressure
Model 1 1500 – 2000 kg/cm²
Injection Capacity
Model 1 150 – 200 g (depending on screw size)
Screw Diameter
Model 1 32 – 40 mm
Injection Speed
Model 1 60 – 120 mm/s
Heating Zones
Model 1 4 zones
Temperature Control
Model 1 PID, ±1°C accuracy
Power Supply
Model 1 AC 220V / 380V, 50/60 Hz
Motor Power
Model 1 ~11 – 12.5 kW
Heater Power
Model 1 ~6.5 kW
Machine Weight
Model 1 Approx. 5000 – 5500 kg
Dimensions (L×W×H)
Model 1 ~1.8 m × 1.6 m × 3.2 m
Control System
Model 1 PLC + Touchscreen HMI
Cooling System
Model 1 Water cooling required
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
Related Products

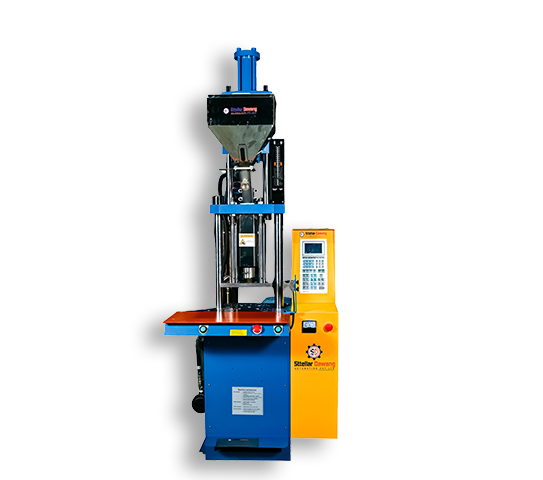

SD-VIM-15T Advanced Solutions For End-To-End Wire Processing

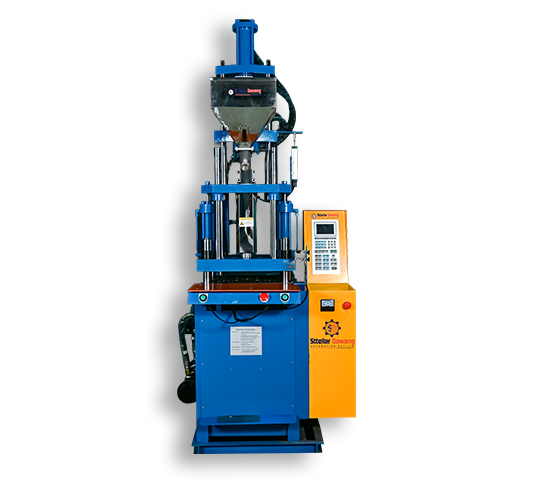

SD-VIM-25T Advanced Solutions For End-To-End Wire Processing
