Cutting Sleeve Cutting Machines

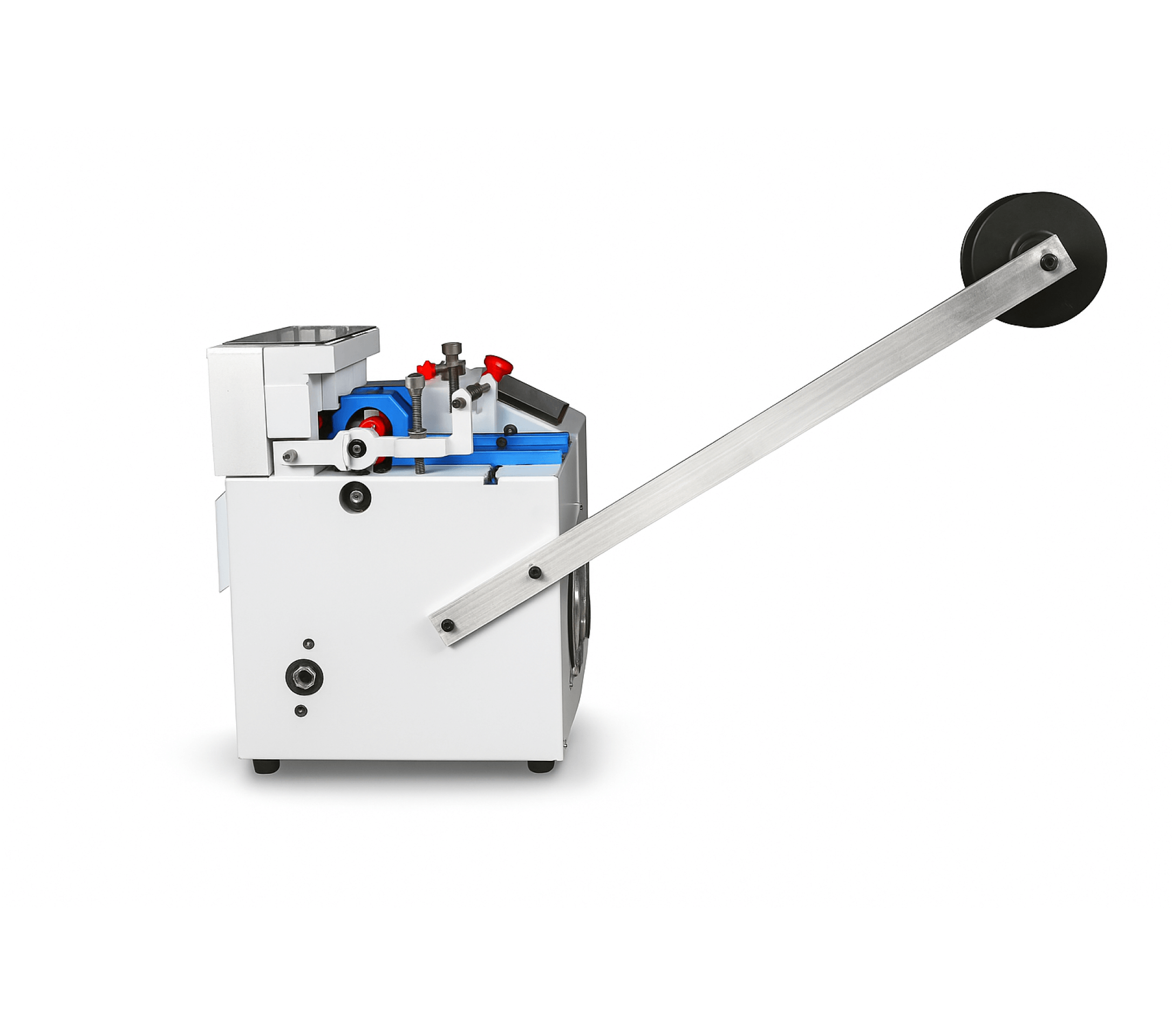

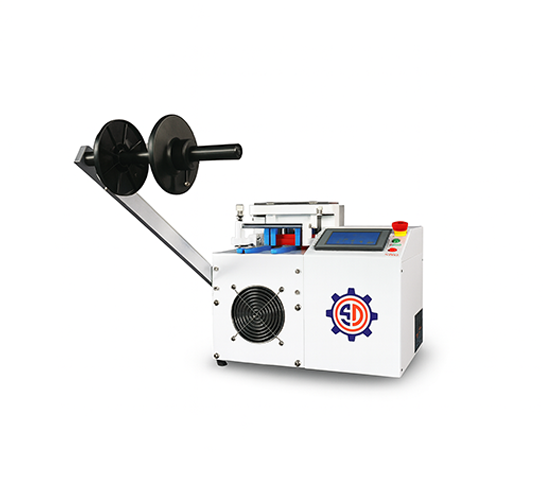

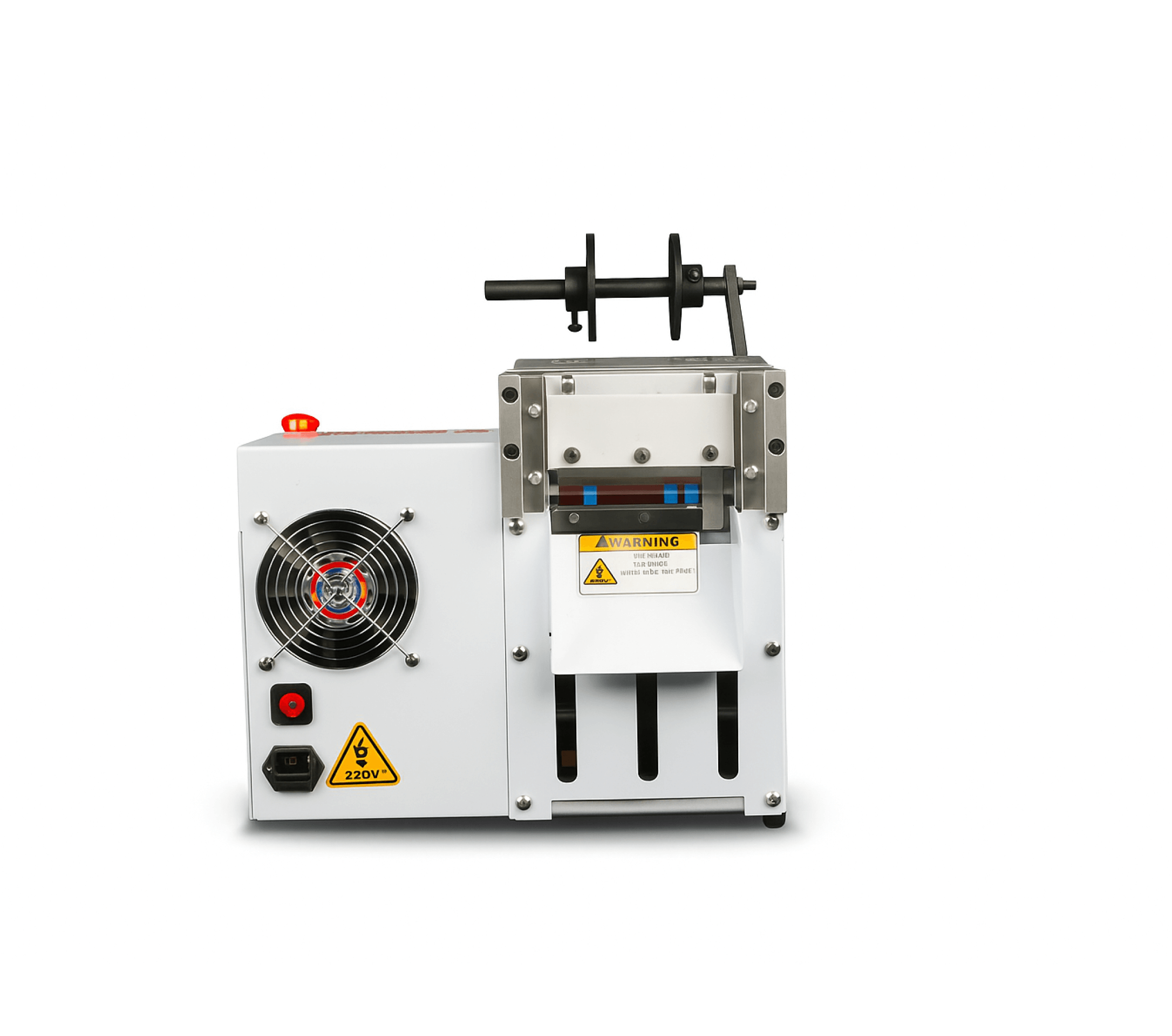

TubeCut-100

AUTOMATIC MEASURING AND SLEEVE CUTTING MACHINE(MAXIMUM MATERIAL WIDTH 100.0 MM)

AUTOMATIC MEASURING AND SLEEVE CUTTING MACHINE(MAXIMUM MATERIAL WIDTH 100.0 MM)

High-performance, PLC-controlled cutting machine with touch screen HMI interface. Delivers precision with hybrid stepper motors, easy setup with adjustable guides, and supports multi-material feeding. Built with a durable roller feed and robust cutting system for reliable, low-maintenance cost.

Robust all-electrical construction designed for long-lasting, reliable performance.
High-speed, smooth feeding system with support for multiple material types.
User-friendly touch-screen interface enabling precise setup and accurate cutting operations.
Enhanced control and reduced material waste ensuring consistent quality in high-volume production environments.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Durable, long-life construction

Built with an all-electric robust structure ensuring stable and long-term use.

High-speed multi-material feeding

Optimized roller system handles tubes and sleeves smoothly.

Touch-screen precision control

Easily adjustable parameters for accurate and consistent production.

Optimized for volume production

Reduced waste and highly repeatable cutting quality.

Technical Specifications

Specifications	Details
Model	TubeCut-100
Operating Interface	HMI (Touch Screen)
Maximum Material Width	100.0 mm
Maximum Tube Outer Diameter	40.0 mm
Maximum Tube Thickness	2.0 mm
Maximum Feed Rate	1.0 meter per second
Roller Pulling Force	35 N
Cut Length Range	1 mm to 9999 mm
Length Increment	0.1 mm
Length Accuracy	±0.5 mm (L × 0.02%) — depends on materials
Program Memory Capacity	Up to 100 programs with all processing parameters
Noise Level	< 70 dB
Power Consumption	750 watts
Power Supply	230–240V (50/60 Hz) — optional 110V
Dimensions (L × W × H)	300 × 300 × 450 mm
Net Weight	25 kg
Output Capacity	7000 pcs/hour at 100 mm length (depends on materials)

Model

Model 1 TubeCut-100

Operating Interface

Model 1 HMI (Touch Screen)

Maximum Material Width

Model 1 100.0 mm

Maximum Tube Outer Diameter

Model 1 40.0 mm

Maximum Tube Thickness

Model 1 2.0 mm

Maximum Feed Rate

Model 1 1.0 meter per second

Roller Pulling Force

Model 1 35 N

Cut Length Range

Model 1 1 mm to 9999 mm

Length Increment

Model 1 0.1 mm

Length Accuracy

Model 1 ±0.5 mm (L × 0.02%) — depends on materials

Program Memory Capacity

Model 1 Up to 100 programs with all processing parameters

Noise Level

Model 1 < 70 dB

Power Consumption

Model 1 750 watts

Power Supply

Model 1 230–240V (50/60 Hz) — optional 110V

Dimensions (L × W × H)

Model 1 300 × 300 × 450 mm

Net Weight

Model 1 25 kg

Output Capacity

Model 1 7000 pcs/hour at 100 mm length (depends on materials)

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
